CS2030 SuiteTouch™ Keypad

Our Premium Security Keypad

The CS2030 SuiteTouch is our ultra-modern touchscreen Keypad. Offering all of the features of the Classic keypad plus on-screen time & date, easy menu driven actions for all programming, operation and user history log.

In addition to the mounting and backplate options of the CS2020, the SuiteTouch can also operate in PORTRAIT (vertical) mode, useful for installations with restricted horizontal space.

  • Plug-in compatible with CS2020 keypad installations allowing mixed systems
  • Landscape or Portrait mount (ideal for replacing vertical-mount ‘plex’ type systems)
  • Dimensions: 5.6” W × 4.7” H (160 mm × 120 mm)
  • On-screen time/date
  • 6 total zone connections
  • SmartBypass™
  • One button arming for both Home and Away
  • Programmable zone names and flexible type/polarity
  • Input for water sensors
  • Dynamic screens and history log display
  • "Non-Motion / Wellness Check" ability
  • Optional Temperature Sensing / Heat Map ability
  • Optional integrated Wireless receiver, for communication with CondoSecure door and water leak sensors

Get the Spec Sheet here

We have a number of mounting solutions including custom laser-cut backplates to your specifications, to accommodate any sort of old/orphaned retrofit system applications.

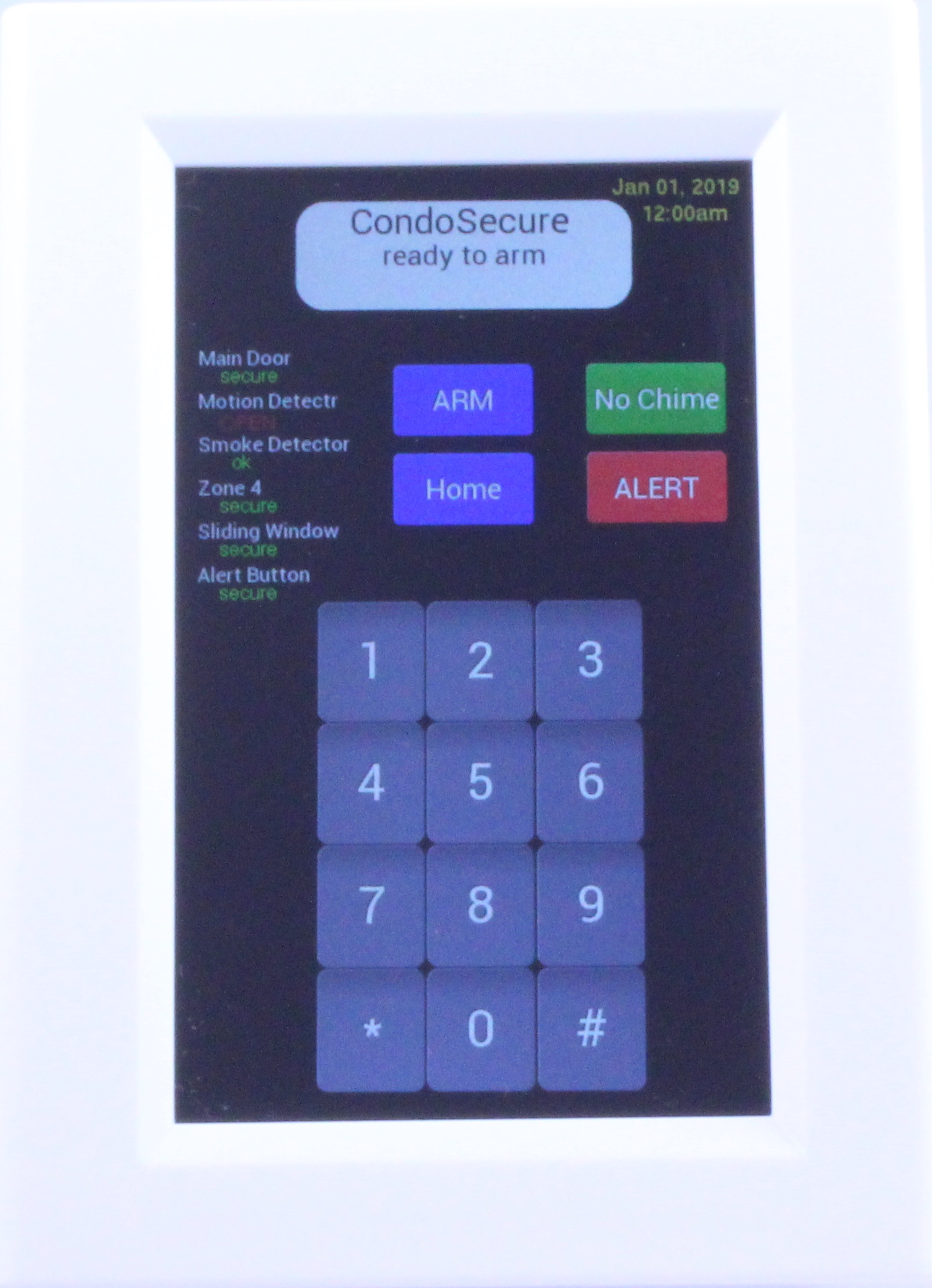

CS2030 Portrait Mode

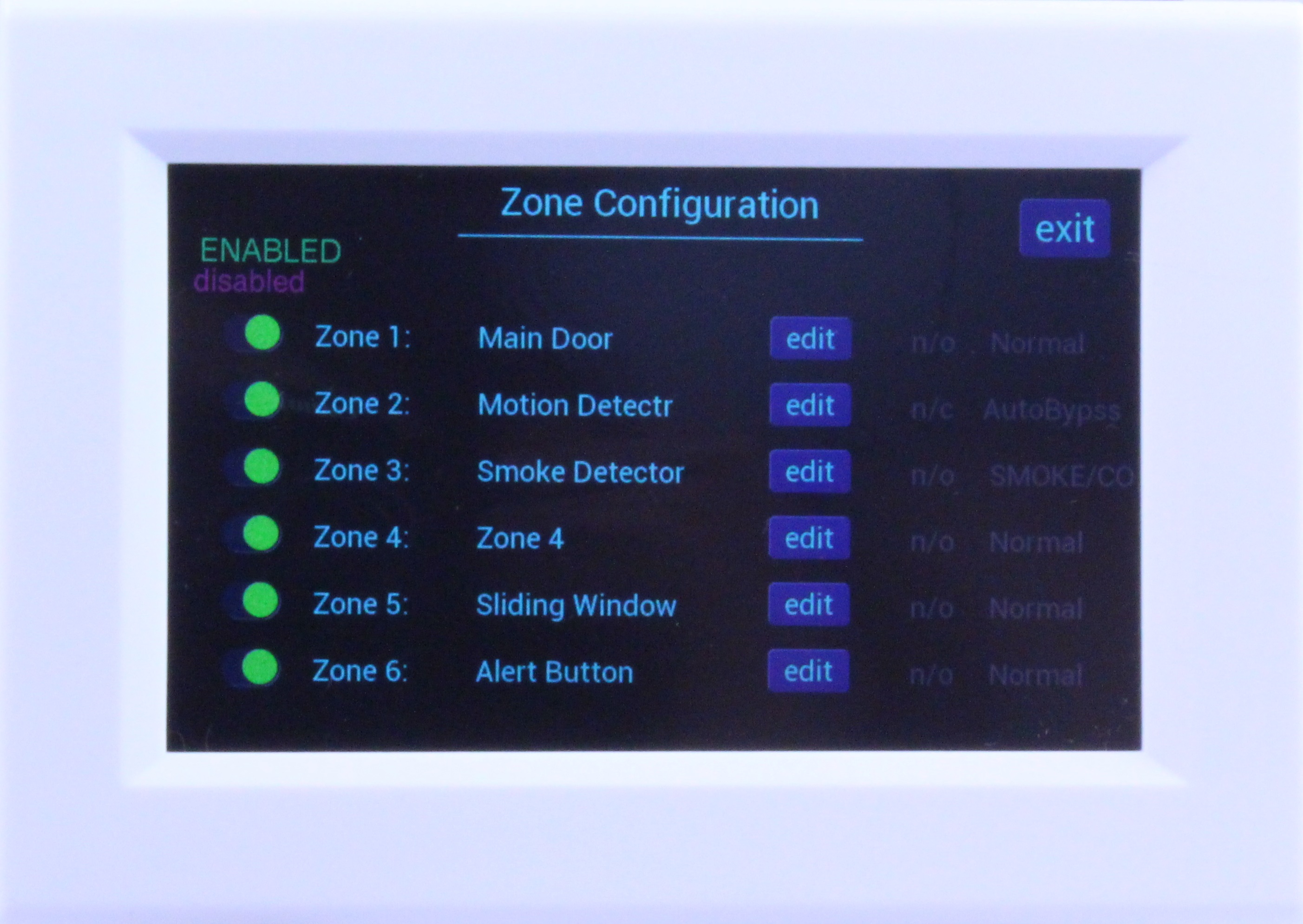

CS2030 Menus
