Riser Controllers
CS4858 Advanced Suite Controller Panel / Riser Board
The CS4858 is an 8-channel riser, high-speed communication/distribution panel providing system capabilities and additional keypad functionality, such as remote password configuration, time setting and reset. It is perfect for use in retrofit projects where the wiring is in place but exact wiring layout is not able to be determined.
Keypads connect in parallel manner for this style system and have enhanced bidirectional communication, control, and messaging capabilities.
Number needed in a condo tower will be determined by the number of risers, 8 per CS4858.
• Power Requirement: 750mA @ +12 Vdc power supply (the CS4858 does not distribute riser power). Maximum # of CondoSecure keypads, any model, per riser: 200
Keypads connect in parallel manner for this style system and have enhanced bidirectional communication, control, and messaging capabilities.
Number needed in a condo tower will be determined by the number of risers, 8 per CS4858.
• Power Requirement: 750mA @ +12 Vdc power supply (the CS4858 does not distribute riser power). Maximum # of CondoSecure keypads, any model, per riser: 200

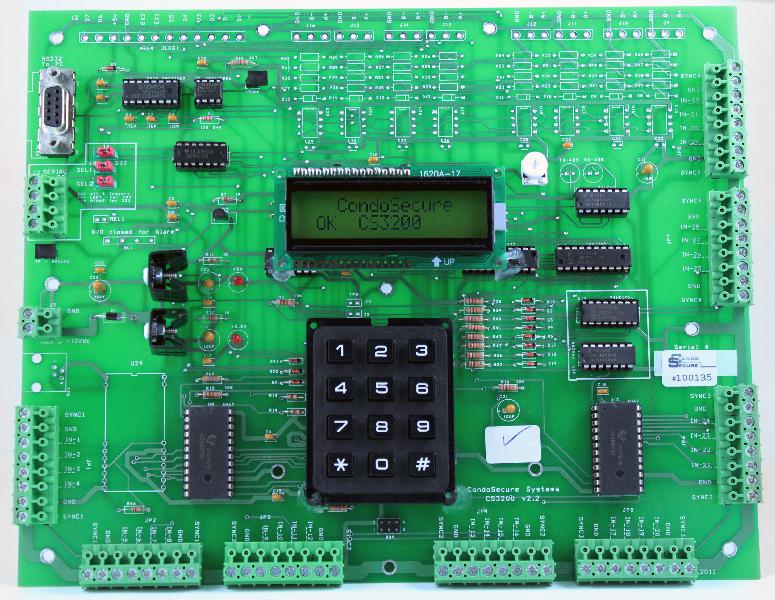

CS3200 Legacy Controller Panel (discontinued - special order)
The CS3200 was our main controller panel for the last decade, now replaced for new system sales by the CS4858. The CS3200 is available for supporing older legacy systems as well as for adding expanded zone capability to a suite alarm common area system when added with the CS64 Zone Expander.
• Power Requirement: 500mA @ +12 Vdc power supply (the CS3200 does not distribute riser power). Maximum # of CondoSecure keypads, any model: 1,280
• Power Requirement: 500mA @ +12 Vdc power supply (the CS3200 does not distribute riser power). Maximum # of CondoSecure keypads, any model: 1,280
