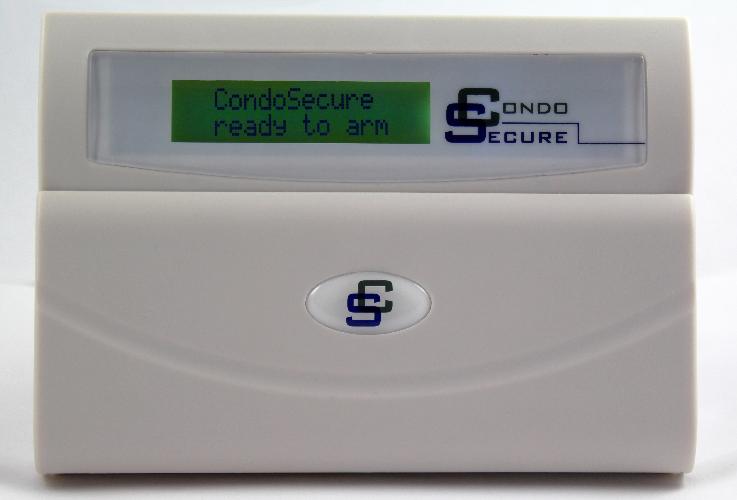

CS2020 LCD Keypad

Our Classic Security Keypad

Easiest to operate without compromising on features.....

  • Multi-zone Control
  • Interactive text display
  • Duress alarm
  • SmartBypass™
  • Dimensions: 6.3” W × 4.4” H (160 mm × 112 mm)
  • One button arming for both Home and Away
  • Input for water sensors
  • "Non-Motion / Wellness Check" ability
  • OPTIONAL Temperature Sensing / Heat Map ability

With lots of inputs, the CS2020 monitors not only the front entrance to a suite, but also interior zones that can be turned on or off by the resident if staying at home; an emergency loop that is triggered by a button on the front of the keypad as well as can be connected remotely - ideal for residents that want a safety pendant or remote emergency call button system in their suite, simply connect the dry contact alarm output from the remote system to the CS2020. Patio Door/Windows zones can be bypassed when staying home with the SmartBypass™ ability.

As well, there is a generic 24hr loop that is set from the main Security Desk PC. This can be assigned to Smoke/GAS/Water/temperature alarms inside the suite, and more, with selectable N/O or N/C for alarm state, all configured from the main CondoSecure software at the security desk. The CS2020 has one Master code and eight Guest codes available, as well as changeable entry/exit delay times and silent alarm/duress alarm functions.

Get the Spec Sheet here

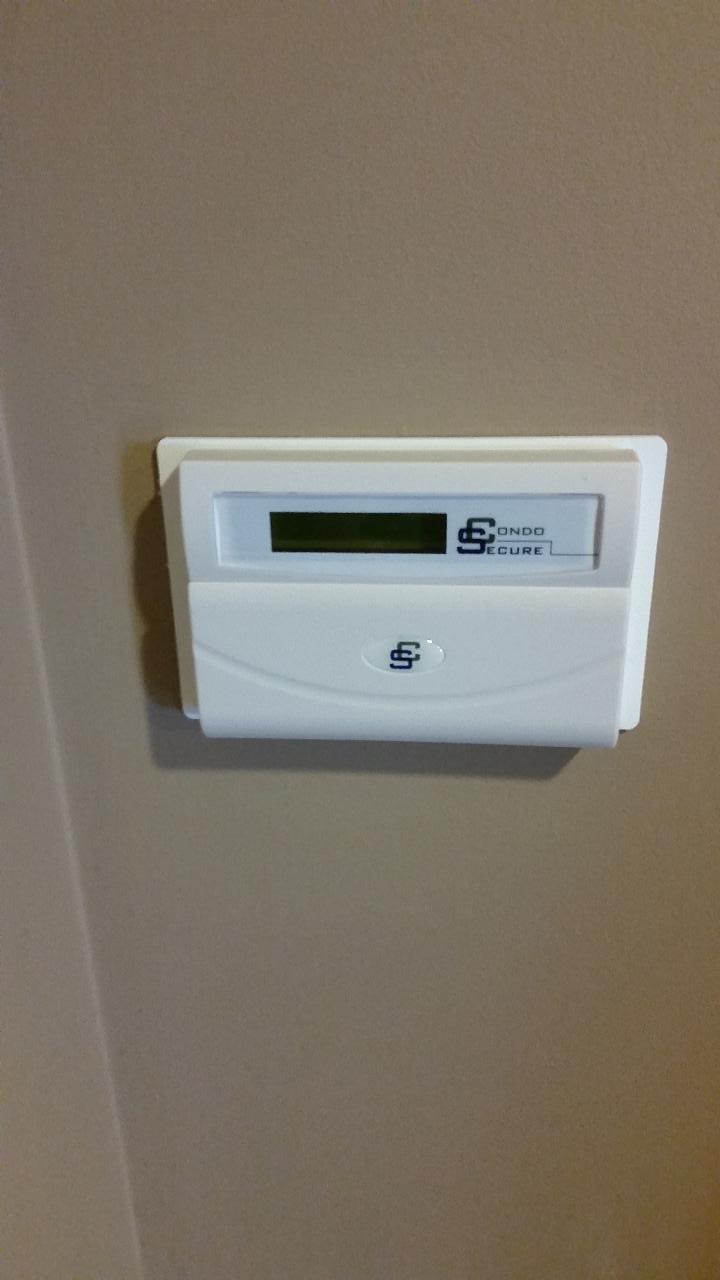

We have a number of mounting solutions including custom laser-cut backplates to your specifications, to accommodate any sort of old/orphaned retrofit system applications.
